Quad Sprayers

Included: 2604.011 - Trolley made of epoxy painted steel, mounted on large section pneumatic wheels, with 50 l polyethylene tank with suction filter, filling filter and drain plug; 5037.211 - Imovilli Pompe M25 12Vdc Pump 0021.001 - Optional high pressure hose reel with 20 meters of tube. Note: Lance is NOT included. Pump info: Pump with two semi-hydraulic membranes, internal manifolds and parts in contact with oxidized anti-corrosion liquids. 12 V DC motor. Pump control model C11. Dimensions 425 x 250 x 290 Weight 11.8 kg Max Power (HP) 0,55 Max Flow (L/min) 23.7 Max Pressure (Bar) 12 Handy, robust, balanced and compact, with folding handles and removable hose reel for convenient transport or storage. Ideal for pesticide treatments on plants, flowers, vineyards, fruit trees and vegetables; Weeding on avenues and flower beds. Disinfection of environments. Sprinkling of insect repellent liquids. Small washes. Capacity: 120 L / 1 ' Learn More

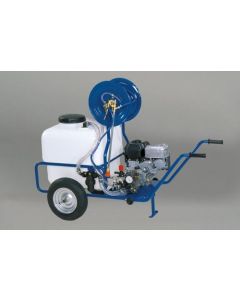

Included: 2604.006 - Trolley made of epoxy painted steel, mounted on large section pneumatic wheels, with 50 l polyethylene tank with suction filter, filling filter and drain plug; 5043.015 - MOTOPOMPA M20 Engine 0021.001 - Optional high pressure hose reel with 20 meters of tube. Note: Lance is NOT included. Pump info: Pump with two semi-hydraulic membranes, internal manifolds, oxidized anti-corrosion heads, regulating valve only incorporated. Dimensions 202 x 270 x 225 Weight 4 kg Max RPM 700 Max Flow (L/min) 20 Max Pressure (Bar) 25 Handy, robust, balanced and compact, with folding handles and removable hose reel for convenient transport or storage. Ideal for pesticide treatments on plants, flowers, vineyards, fruit trees and vegetables; Weeding on avenues and flower beds. Disinfection of environments. Sprinkling of insect repellent liquids. Small washes. Capacity: 120 L / 1 ' Learn More

The 2.7M boom connects to Draper Stock Nos. 34674, 34676 and 34677 all terrain vehicle (ATV) crop sprayers. Spray width when fully deployed 4.5M. The flexible boom arms remove kinking and alleviates breaking of the pressure hose. Foldable for access through hedgerows and gates. Connected by loop/pin type hitch. Can also be used in conjunction with a trigger operated lance via the twin connectors. Suitable for spraying fertilizer, weed killer, de-icer and ethylene glycol products. Display carton. Learn More

Expert Quality, mounts to any all terrain vehicle (ATV). Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by 12V battery or connected via electric 12V motor on ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation. Display carton. Learn More

Expert Quality, mounts to any all terrain vehicle (ATV). Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by 12V battery or connected via electric 12V motor on ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation. Display carton. Learn More

Expert Quality, mounts to any all terrain vehicle (ATV). Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by 12V battery or connected via electric 12V motor on ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation. Display carton. Learn More
